loop cable for gate barrier Dual Channel 12-24V AC
$62.72
$114.15

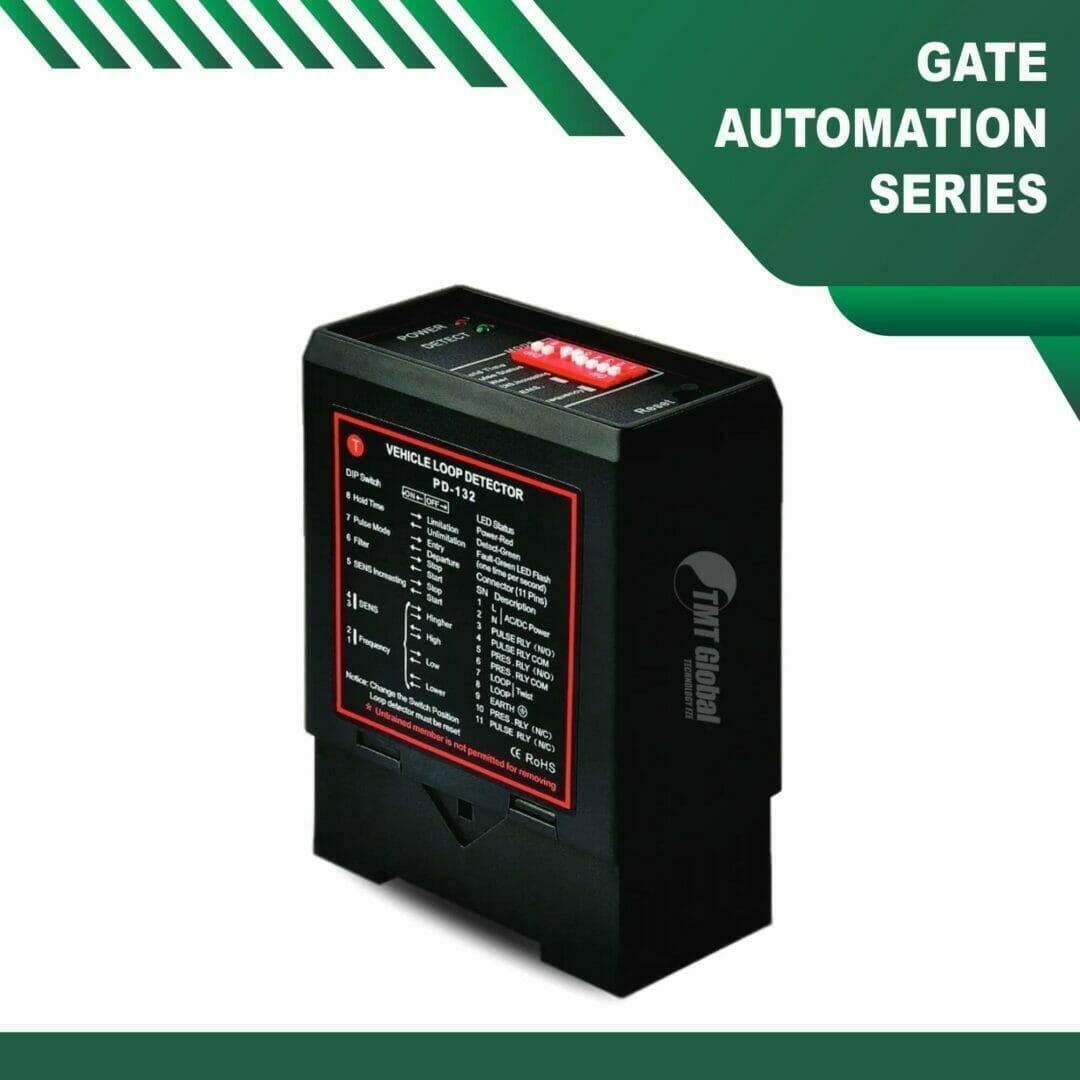

TMT Global oman loop detector Gate Dual Channel 12-24V AC tmt TMT Global loop cable for gate barrier Dual Channel 12-24V AC tmt Loop detectors in recent years have become a popular tool having innumerable applications in policing, right from surveillance operations to traffic control. Automation of gates and doors has become a popular usage of the loop detector. The Digital Technology of the Loop Detector Enables the Equipment to sense a change in the Inductance of the loop as soon as it Detects the metal object in its path. The inductive loop which detects the object is made of insulated electrical wire (32/020; 32 Strand, 2mm diameter) and is arranged either as a square or rectangle shape. Technical Parameters Product Name: Loop Detector Self-turning range: 20-2000μH Response Times: Turn-on 10-90MS Turn-off 10-90MS Sensitivity: 16 way selectable , Highest 0.010% DL/L , Lowest 2.56% DL/L Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz) Visual Indications: Power LED-Red, Channel LED-Green Reset: Reset by push button on front of enclosure Frequency Four step switch selectable 20-80KHz Relay Output: Presence Relay/Fault Relay Voltage tolerance : AC 10% / -15% Voltage tolerance : DC±15% Device Channel: Single /Double Operating temperature: 40℃ to 70℃ (-111℉ to 158℉) Sensitivity : 4 levels adjustable Relative Humidity: <95% Application: open gate, match with barrier gate, gate opener etc.
