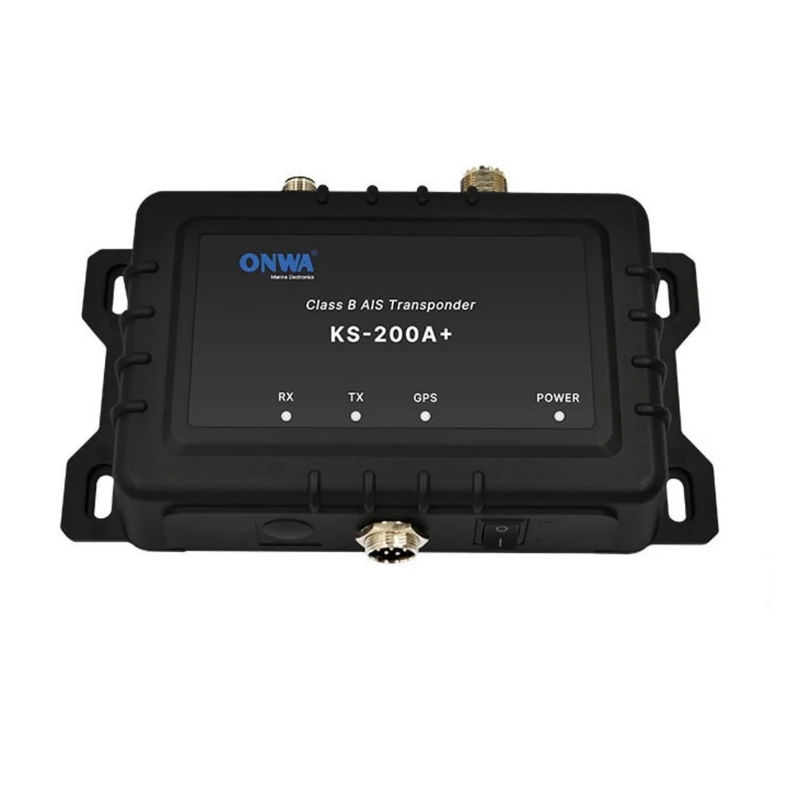

AIS TRANSPONDER CLASS B

GPS Receiver (AIS Internal) :    IEC 31108-1 compliment.Connectors  :  VHF Antenna connector PL259 female, GPS Antenna connector SMA female, NMEA 2000 Interface.Dimension :    200mm (length) x 102mm (width) x 45.8mm (height) Weight :   0.45 kg.Power Input :  10.5~35 VDC.Power Consumption :  0.20A nominal.Electrical Interface :    RS232 38,400 baudrate bi-directional Environmental :  IEC 60945 (Cat C) Operating temperature :   -25°C to 60°CNMEA Sentence supported :  VDM, VDO, RMC, GSV, GGA, GSAFrequency rate : 161.975 MHz, 162.025MHzAccess Scheme : SOTDMAChannel bandwidth :  SOTDMAModulation :  AIS GMSKNumber of IS Transmitter :  1Number of AIS receiver :   2.AIS Channel 1 : CH 87B (161.975 MHz).AIS Channel 2 :  CH 88B (162.025 MHz).Standard TX power output :  5W.Customizable TX power output :  2W, 12.5W.RX Sensitivity : -120dBM @ 20% PER.RX Message format :  AIS CLASS A AND B MESSAGES.Comply standard : IEC-62287 IEC 62287-2 Ed. 2.0:2017.
